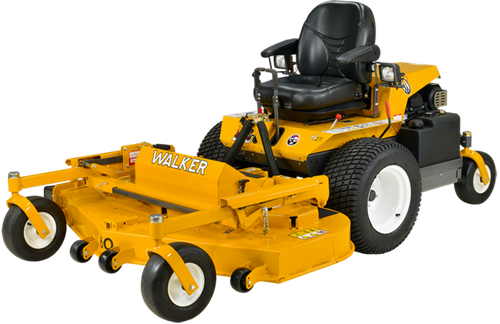

Walker Model H

The Walker Model H stands alone in its class for high productivity and improved return on investment. When fast, beautiful results are demanded on vastly different properties, turf types, and conditions, the Model H delivers for the most discerning operators. A variety of attachments and add-ons keep the Model H productive year-round with excellent results.


Powerful high-production with EFI efficiency.

Download Model H27i Spec Sheet

  • 27-HP, Electronic Fuel Injection (EFI) Kohler OHV V-Twin engine, air-cooled
  • Tilt-up body completely exposes drive train
  • Remote oversized air cleaner for engine
  • Splined PTO drive shaft with quick-disconnect coupler
  • 9.4 gallon (35.6 liter) fuel tank capacity
  • 10 mph (16 kph) ground speed

Compatible Decks:

  • Side Discharge (DS): 60″ (52″, 56″, 62″, 74″ w/ kit)
  • Mulching (DM): 52″ (60″ w/ kit)
  • Rear Discharge Deck (DR): 52″, 64″

Two strong design advantages — front-cut mowing and Kohler’s Delphi electronic fuel injection system — have been brought together in the H27i. It is the ideal combination of horsepower, productivity and fuel efficiency.


Powerful and efficient productivity

  • 37-HP, Briggs & Stratton Vanguard EFI Engine
  • Cummins Filtration OptiAirTM with remote Enginaire precleaner for increased engine life
  • Dual, independent Hydro-Gear® ZT3400 transaxles
  • Deep deck design delivers Walker’s trademark precision cut
  • Tilt-up body completely exposes drive train
  • Remote oversized air cleaner for engine
  • Splined PTO drive shaft with quick-disconnect coupler
  • Dual 4.7 gal. fuel tanks with easy-to-use fuel selector valve
  • 10 mph ground speed

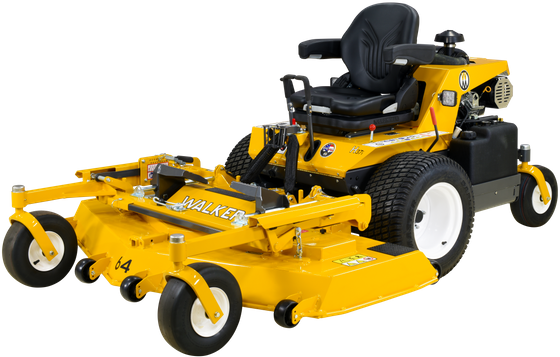

Powered by a 993cc big block Vanguard EFI engine, the H37i is a powerful and efficient machine for the professional user. Its engine with high capacity air cooling system, big 5 inch diameter Donaldson air cleaner, Grammer suspension seat, and fully articulating decks means the H37i can mow complex properties easier, in harsh conditions longer. And, with the optional Model H Power Tilt-Up® deck, maintenance and storage are even easier.


Superior fuel efficiency and maximum torque.

Download Model H24d Spec Sheet

  • 23.7-HP, Yanmar three cylinder diesel engine, liquid-cooled
  • Electric radiator fan with reversible self-cleaning action
  • Tilt-up body completely exposes drive train
  • Remote oversized air cleaner for engine
  • Splined PTO drive shaft with quick-disconnect coupler
  • 9.4 gallon (35.6 liter) fuel tank capacity
  • 10 mph (16 kph) ground speed

Compatible Decks:

  • Side Discharge (DS): 60″ (52″, 56″, 62″, 74″ w/ kit)
  • Mulching (DM): 52″ (60″ w/ kit)
  • Rear Discharge Deck (DR): 52″, 64″

For discerning operators, the H24d delivers an impressive package. Featuring a Kohler KDW1003 diesel engine with 1028 cubic centimeters of displacement, the H24d provides consistent power and smooth, quiet operation. The self-cleaning radiator, 9.4 gallon fuel capacity, and Grammer suspension seat allow for comfortable extended operation. The standard utility bed and optional add-ons make the H24d a versatile, year-round performer.
