Coupled with the Model H, the DR64 provides high production mowing for mid to large size properties. From municipalities and institutions, to commercial operators and homeowners, the DR64 improves bystander safety and operator cleanliness, provides beautiful results across many grass types and conditions, and functionality for the machine operator and mechanic. With two individual adjustable footrests, both tall and short operators can configure the footrests for all day comfort. The out front design, along with the thoughtful and innovative engineering of the DR64, make this deck a valuable addition to any garage or mowing fleet.

Type: Rear Discharge

Part: DR64-3 (Belt Drive)

Cutting Width: 64 in (162 cm)

Blades: 3

Ideal Application: Model H only, rear discharge improves bystander safety and operator cleanliness

Designed for H-series tractors, the 52-inch rear discharge/mulch deck is ideal for high production mowing on finished turf as well as field mowing. Because of the ability to mow on both sides of this deck, compact mowing is also easily done with this deck. It is a favorite of facility managers because of its clean cut and ability to recirculate cut material back into the turf.

Type: Rear Discharge

Part: DR52-3 (Belt Drive)

Cutting Width: 52 in (132 cm)

Blades: 3

Ideal Application: Model H only, clean cut and ability to recirculate cut material back into the turf

The compact 36-inch side discharge deck is ideal for cutting finished turf with narrow spaces. The S36 features an extended front housing to increase overall deck capacity and improve quality of cut in difficult conditions. Like all Walker decks, the S36 tilts-up for easy maintenance and cleaning. The rubber discharge chute provides a safe and functional guard for the S36, and easily fold up for fitting through narrow gates.

Type: Side Discharge

Part: DS36-2 (Heavy Duty)

Cutting Width: 36 in (91 cm)

Blades: 2

Ideal Application: Perfect for compact, tight areas like narrow gates and berms

• Matching nicely with the lower horsepower tractors, the 42-inch side discharge deck delivers a beautiful cut and is suitable for mowing in compact areas.

  Type: Side Discharge

  Cutting Width: 42 in (107 cm)

  Blades: DS42-2

  Ideal Application: Perfectly matched to lower horsepower engines

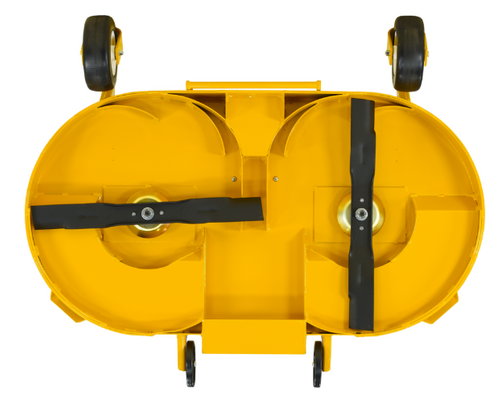

A favorite of landscape contractors, the 48-inch discharge deck is a good balance of compact size and high production mowing. This deck is especially productive when used on any Model B tractor.

Type: Side Discharge

Part: DS48-1, DS48-2 (Heavy Duty), DS48-R

Cutting Width: 48 in (122 cm)

Blades: 2

Ideal Application: Perfect balance of compact size and high production mowing

• Using a unique three-blade V design, the 52-inch discharge deck is a high production deck while maintaining Walker's trademark beautiful cut on finished turf. This deck is often used on B23i tractors to quickly achieve beautiful finished results.

  Type: Side Discharge

  Part: DS52-3 (Belt Drive)

  Cutting Width: 52 in (132 cm)

  Blades: 3

  Ideal Application: Belt driven for quiet, smooth operation and a good balance of high production deck and compact capabilities

• A three-blade, gear-driven design, the 56-inch discharge deck excels at high production mowing across most grass types and conditions, especially finished turf. This heavy-duty deck uses cast iron gearboxes for durability and a tunnel design to efficiently move high volumes of cut material from under the deck.

  Type: Side Discharge

  Part: DS56-2 (Heavy Duty)

  Cutting Width: 56 in (142 cm)

  Blades: 3

  Ideal Application: Superior trimming capability thanks to a unique side overhang

Designed for high production mowing in both finished and rough conditions, the 61-inch side discharge deck has improved cut quality, left-side trimming capability, and clipping discharge and dispersement over the previous design, the S60. The S61 is lighter and shorter from front to back, providing the Model H with better agility and overall shorter machine length. The new rubber discharge shield is stiffer to eliminate shield droop and discharge restriction, and the new dampened belt tensioner provides adjustment-free belt maintenance and tool-less belt changes. The S61 is compact and easy to operate, and it provides consistent cut quality and beautiful results.

Type: Side Discharge

Cutting Width: 61 in (155 cm)

Blades: 3

Ideal Application: High production side-discharge mowing for all mid to large size properties

As Walker's first belt-driven deck, the 62-inch discharge deck is a mainstay in the line among the C, T and D series tractors. For high production mowing on both finished turf and rough mowing, the D62 is hard to beat.

Type: Side Discharge

Part: DS62-3 (Belt Drive)

Cutting Width: 62 in (157 cm)

Blades: 3

Ideal Application: Belt driven for quiet, wide area mowing in both rough and finished turf

Walker's largest deck and the largest deck in the industry for mid-size commercial mowers, the D74 uses a four-blade design with cast iron gearboxes. The combination of Walker's full-floating deck suspension and rear gauge wheels help hold the contours of the terrain and prevent scalping. This deck is ideal for flat, open turf and is a favorite on athletic fields and parks. Standard with cast iron gearboxes.

Type: Side Discharge

Part: DS74-2 (Heavy Duty)

Cutting Width: 74 in (188 cm)

Blades: 4

Ideal Application: Our largest deck ideal for flat, open turf and is a favorite on athletic fields and parks
